All Schwinn 450 items are original manufacturer’s parts.

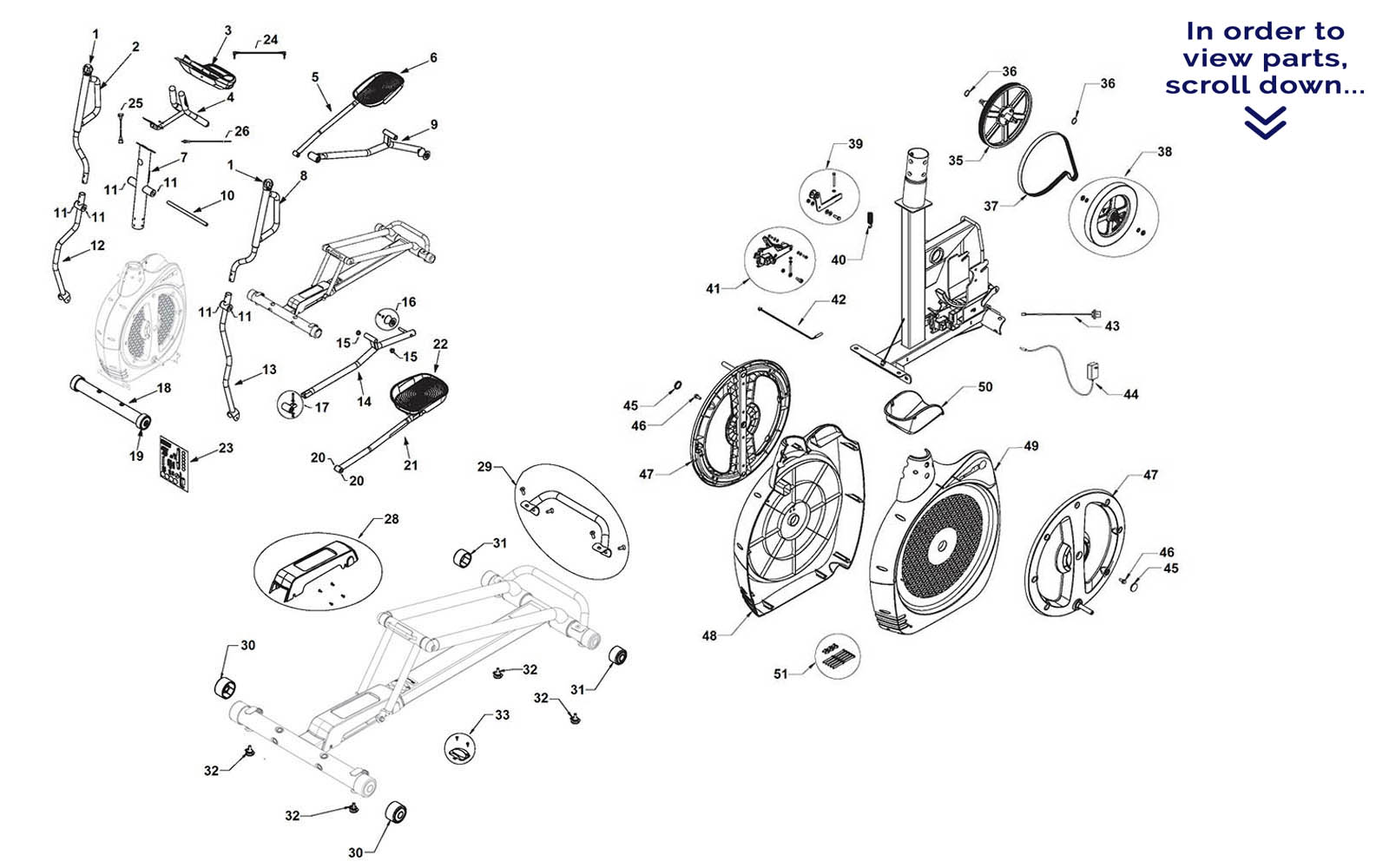

The Schwinn 450 is a premier home elliptical exercise machine. Krislynn carries a full line of high-quality 450 repair parts. Use the diagram below to locate the part you neeed to restore and repair your Schwinn 450 Elliptical exercise machine. A complete table of available parts is directly below the diagram.
Numbers next to the name of each part correspond to the numbers in the diagram.
|
Part No. |
Repair Part Name |
Price |
| 1 |
Upper Arm Knob |
CALL FOR AVAILABILITY |
| 2 |
Upper Right Handlebar Assembly |
CALL FOR AVAILABILITY |
| 3 |
Console Kit |
CALL FOR AVAILABILITY |
| 4 |
Static Bar Assembly |
CALL FOR AVAILABILITY |
| 5 |
Foot Pedal Link, R (includes 6) |
CALL FOR AVAILABILITY |
| 6 |
Footpad Service Kit, R |
CALL FOR AVAILABILITY |
| 7 |
Console Mast Assembly |
CALL FOR AVAILABILITY |
| 8 |
Upper Left Handlebar Assembly |
CALL FOR AVAILABILITY |
| 9 |
Right Leg Assembly (includes 14,15,16) |
CALL FOR AVAILABILITY |
| 10 |
Arm Pivot Rod |
CALL FOR AVAILABILITY |
| 11 |
Bushing. Arm Pivot |
CALL FOR AVAILABILITY |
| 12 |
Lower Right Handlebar Assembly |
CALL FOR AVAILABILITY |
| 13 |
Lower Left Handlebar Assembly |
CALL FOR AVAILABILITY |
| 14 |
Left Leg Assembly (includes 14,15,16) |
CALL FOR AVAILABILITY |
| 15 |
Bushing, 16x22x30 |
CALL FOR AVAILABILITY |
| 16 |
Wheel Service Kit |
CALL FOR AVAILABILITY |
| 17 |
Crank Pivot Service Kit |
CALL FOR AVAILABILITY |
| 18 |
Front Stabilizer Assembly (includes 19) |
CALL FOR AVAILABILITY |
| 19 |
Transport Wheel Service Kit |
CALL FOR AVAILABILITY |
| 20 |
Bushing, 16x29x35 |
CALL FOR AVAILABILITY |
| 21 |
Foot Pedal Link, L (includes 22) |
CALL FOR AVAILABILITY |
| 22 |
Footpad Service Kit, L |
CALL FOR AVAILABILITY |
| 23 |
Assembly Hardware Card |
CALL FOR AVAILABILITY |
| 24 |
Stereo Cable |
CALL FOR AVAILABILITY |
| 25 |
I/O Cable (Upper console cable) |
CALL FOR AVAILABILITY |
| 26 |
HR Connector |
CALL FOR AVAILABILITY |
| 27 |
Rear Frame Sub Assembly |
CALL FOR AVAILABILITY |
| 28 |
Ramp Adj Cover Service Kit |
CALL FOR AVAILABILITY |
| 29 |
Rear Frame Handle Assembly |
CALL FOR AVAILABILITY |
| 30 |
Ramp Release End Cap |
CALL FOR AVAILABILITY |
| 31 |
Rear Stablizer End Cap |
CALL FOR AVAILABILITY |
| 32 |
Adjustable Foot |
CALL FOR AVAILABILITY |
| 33 |
Ramp Bumper Service Kit |
CALL FOR AVAILABILITY |
| 35 |
Crank Spindle & Pulley |
CALL FOR AVAILABILITY |
| 36 |
Retaining Ring |
CALL FOR AVAILABILITY |
| 37 |
Drive Belt |
CALL FOR AVAILABILITY |
| 38 |
Fly Wheel Service Kit |
CALL FOR AVAILABILITY |
| 39 |
Tensioner Assembly w/o spring |
CALL FOR AVAILABILITY |
| 40 |
Tensioner Spring |
CALL FOR AVAILABILITY |
| 41 |
Servo Motor Service Kit |
CALL FOR AVAILABILITY |
| 42 |
Speed Sensor Assy |
CALL FOR AVAILABILITY |
| 43 |
DC Inlet Wiring Harness |
CALL FOR AVAILABILITY |
| 44 |
110VAC Adaptor – 9vdc 1.5a |
CALL FOR AVAILABILITY |
| 45 |
Disc Plug |
CALL FOR AVAILABILITY |
| 46 |
Crank Bolt |
CALL FOR AVAILABILITY |
| 47 |
Crank Arm w/Plastics |
CALL FOR AVAILABILITY |
| 48 |
Shroud, Right w/decals |
CALL FOR AVAILABILITY |
| 49 |
Shroud, Left w/decals |
CALL FOR AVAILABILITY |
| 50 |
Main Shroud Insert |
CALL FOR AVAILABILITY |
| 51 |
Shroud Mounting Hardware |
CALL FOR AVAILABILITY |
